HKS Type S Oil Cooler Kit Front Radiator Mount – GT86 ZN6 BRZ ZC6

Brand: HKS
Product: Oil Cooler Kit S Type for Forced Induction Engines – BRZ ZC6 86 ZN6 Zenki

Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)

Part Number: 15004-AT010

SPECIFICATIONS:
Type: Type S

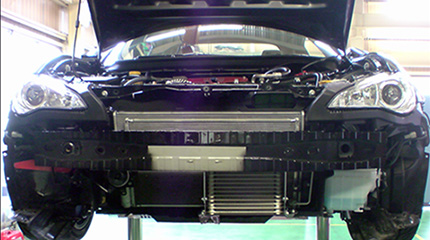

Core Location: In Front of Radiator
Core Size (mm): 200X200X32
Num. of Rows: 15
Hose Size : #10
Aluminum AirGuide: Included

PRODUCT NOTES:
– slight modification required to radiator support
– ideal layout for normally aspirated engines. vehicles going with supercharger or bolt-on turbo should select the alternative option.
