HKS Power Editor Boost controller – Toyota GR Supra RZ

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.

■Outline

• Easy plug and play installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• A bypass connector is included. It allows to bypass the unit even after connecting this kit.
• Easy Writer for Power Editor can edit the preset data.
  Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.

■Main Functions

• Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
• Status indicating LED: Checking the unit status by LED.
• Edit the boost increase data: Editing the preset data to the user’s original data to increase the boost pressure.
  Note: PC with Windows 10, 8.1, 8, or 7 is required.

■Features

• Install this Power Editor between “pressure sensor” and “pressure sensor harness” can increase the boost pressure.
• Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

■Note

• This product is applicable to a stock vehicles and vehicles equipped with HKS products.
• This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

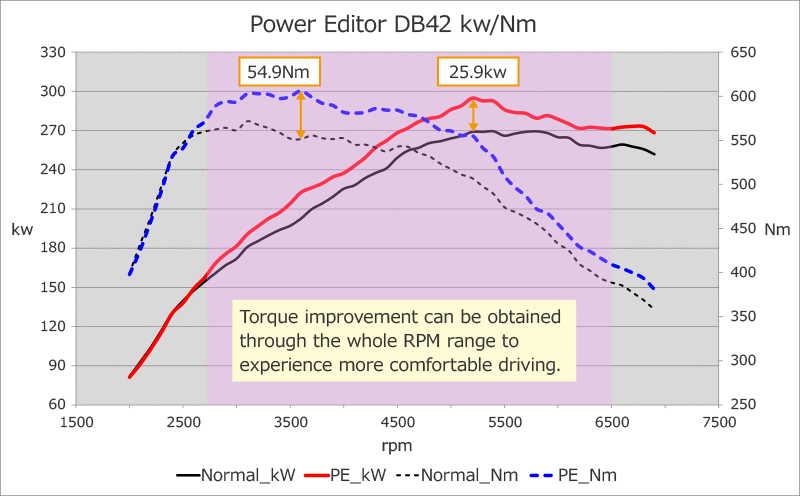

  ■Performance

  	Stock	Power Editor
  Power Increase	－	25.9kW(35.2PS) / 5200rpm
  Torque Increase	－	54.9Nm(5.6kgf・m) / 3600rpm
  Power	269.3kW(366.2PS) / 5800rpm	294.8kW(400.8PS) / 5200rpm
  Torque	571.5Nm(58.3kgf・m) / 3100rpm	606.1Nm(61.8kgf・m) / 3600rpm
  Boost	87.3kPa (0.89kgf/cm2)	107.9kPa (1.1kgf/cm2) (予測値)
