Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.
■Outline
- Easy plug and play installation to increase the boost pressure.
- Boost pressure increase data is preset to Power Editor.

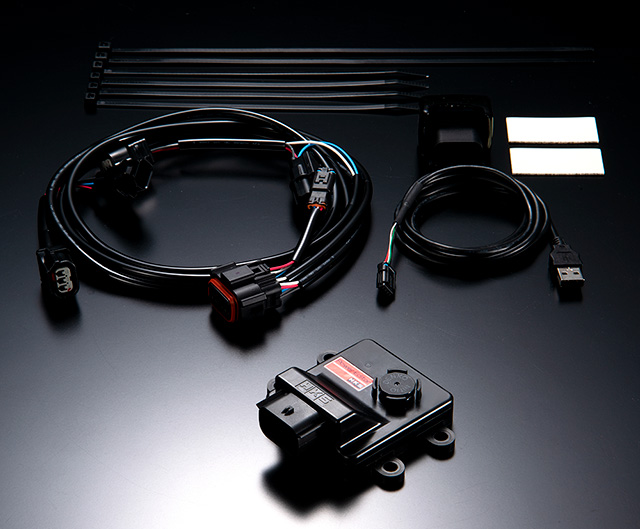

- A bypass connector is included. It allows to bypass the unit even after connecting this kit.
- Easy Writer for Power Editor can edit the preset data.
Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.
■Main Functions
- Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
- Status indicating LED: Checking the unit status by LED.
- Edit the boost increase data: Editing the preset data to the user’s original data to increase the boost pressure.
Note: PC with Windows 10, 8.1, 8, or 7 is required.
■Features
- Install this Power Editor between “pressure sensor” and “pressure sensor harness” can increase the boost pressure.
- Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
- Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.
Note
- This product is applicable to a stock vehicles and vehicles equipped with HKS products.
- This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

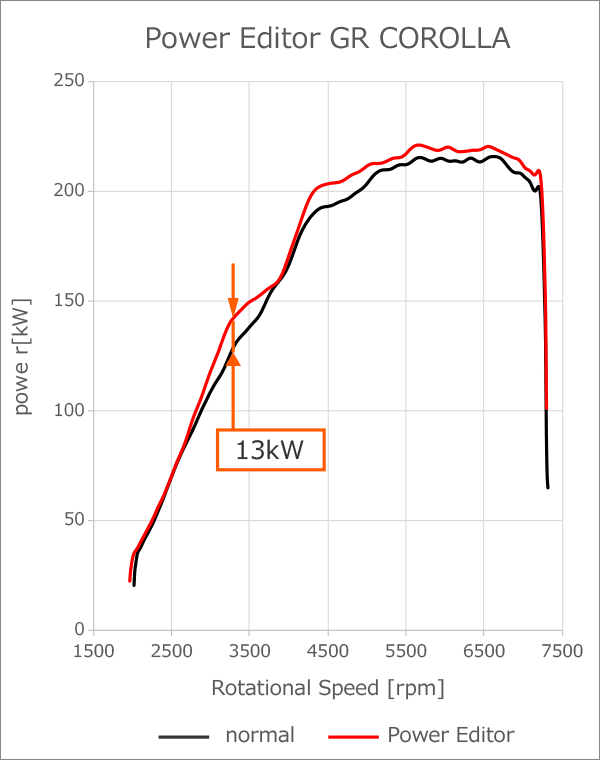

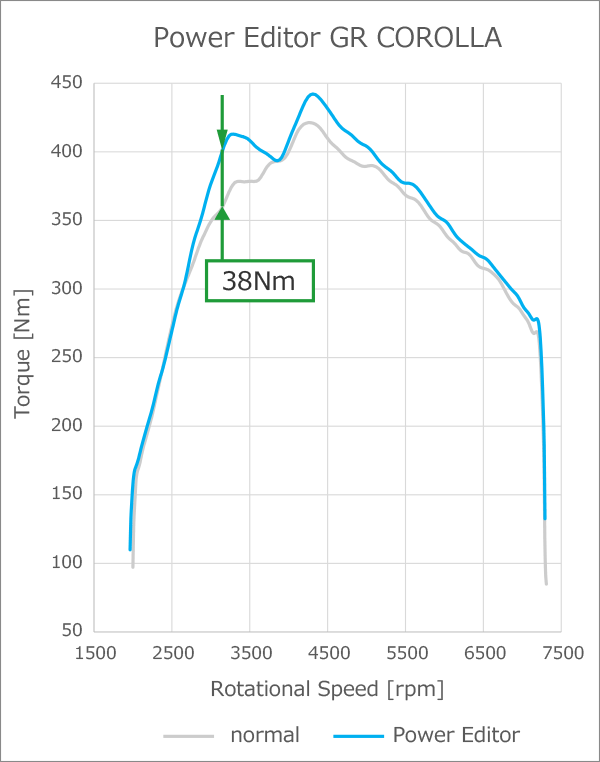

■Performance
| Stock | Power Editor | |
| Maximum Variation (Output) | － | 13kW(17PS)/3210rpm |
| Maximum Output | － | 38Nm(3.9kgf・m)/3180rpm |
| Maximum Torque | 191kW(260PS)/6610rpm | 196kW(266PS)/5640rpm |
| Maximum Boost Pressure | 373Nm(38.0kgf・m)/4260rpm | 392Nm(39.9kgf・m)/4310rpm |
| Maximum Variation (Output) | 157kPa(1.60kgf/cm2) | 172kPa(1.75kgf/cm2) |
