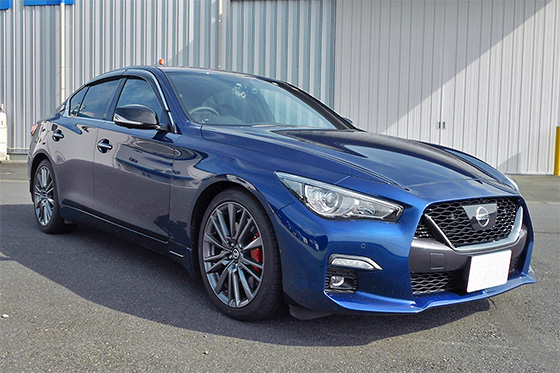

HKS Power Editor Boost controller – Nissan RV37 Skyline 400R VR30DDTT

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.

■Outline

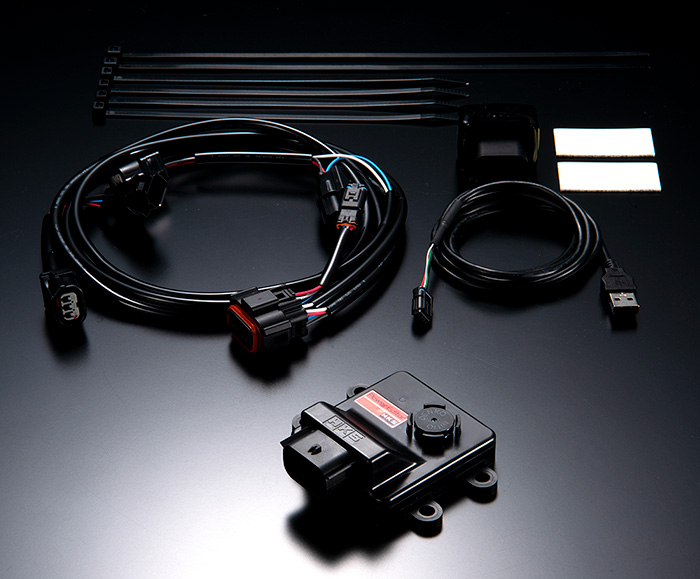

• Easy plug and play installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• A bypass connector is included. It allows to bypass the unit even after connecting this kit.
• Easy Writer for Power Editor can edit the preset data.
  Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.

■Main Functions

• Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
• Status indicating LED: Checking the unit status by LED.
• Edit the boost increase data: Editing the preset data to the user’s original data to increase the boost pressure.
  Note: PC with Windows 10, 8.1, 8, or 7 is required.

■Features

• Install this Power Editor between “pressure sensor” and “pressure sensor harness” can increase the boost pressure.
• Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

■Note

• This product is applicable to a stock vehicles and vehicles equipped with HKS products.
• This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

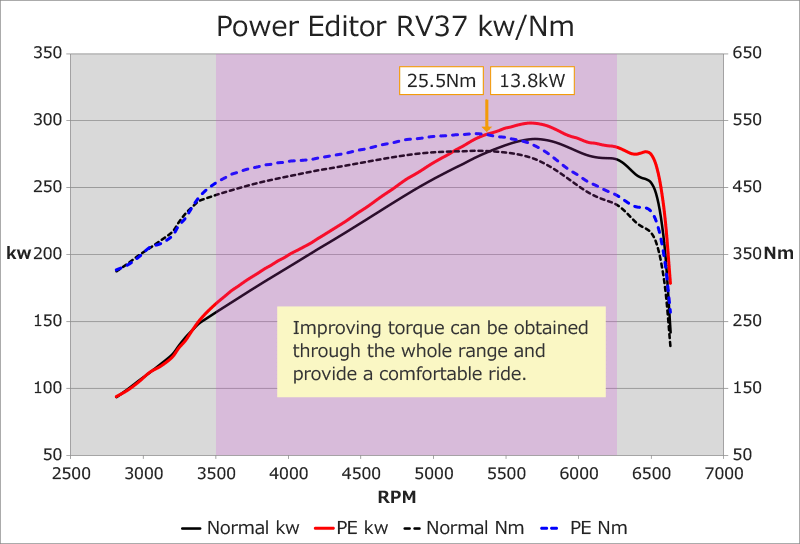

  ■Performance

  	Stock	Power Editor
  Maximum Variation (Output)	－	13.8kW (18.7PS) / 5300rpm
  Maximum Variation (Torque)	－	25.5Nm (2.6kgf・m) / 5300rpm
  Maximum Output	286.4kW (389.4PS) / 5700rpm	298.1kW (405.3PS) / 5700rpm
  Maximum Torque	505.1Nm (51.5kgf・m) / 5300rpm	530.6Nm (54.1kgf・m) / 5300rpm
  Maximum Boost Pressure	98.1kPa (1.0kgf/cm2)	107.9kPa (1.1kgf/cm2)
