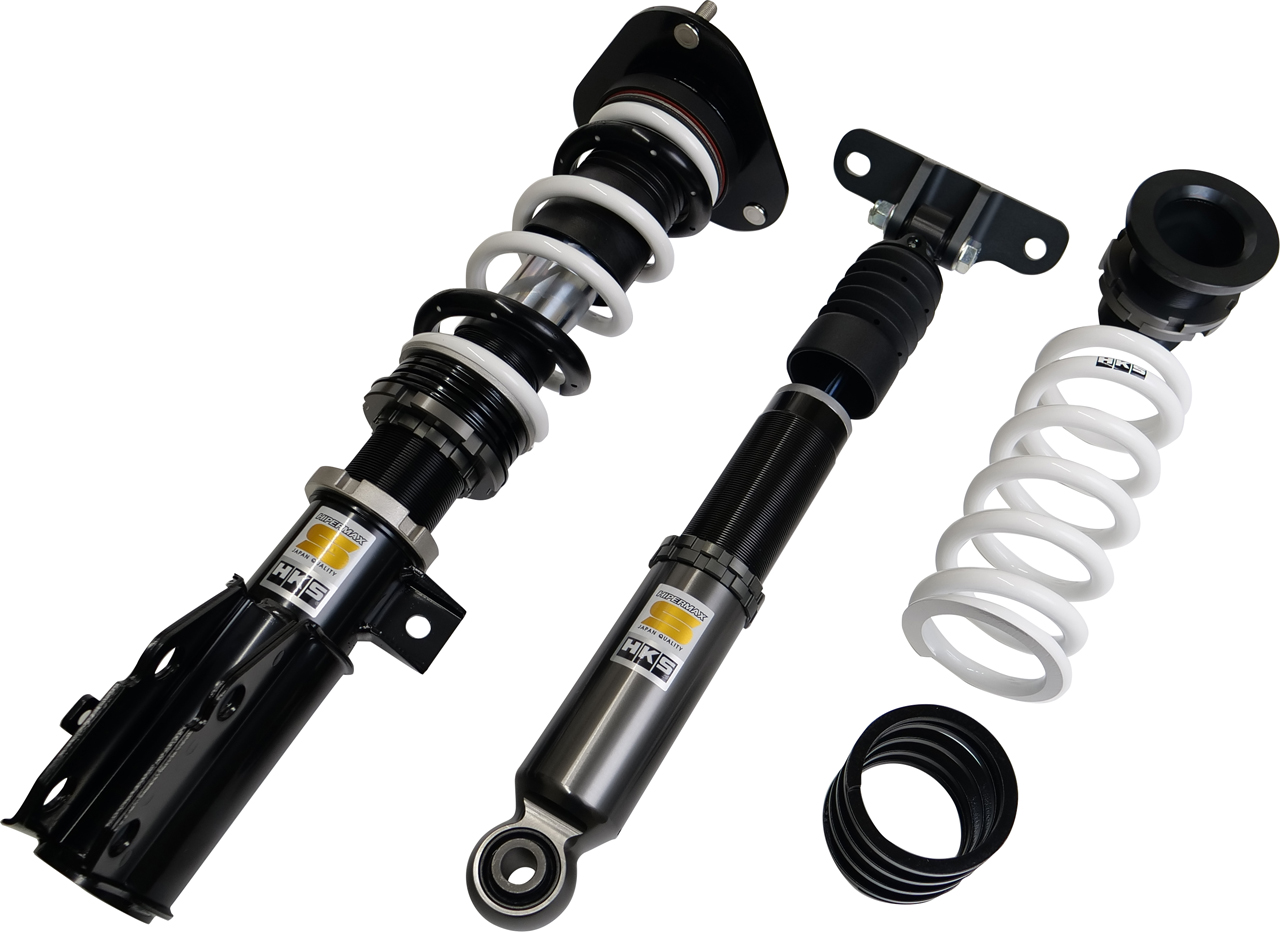

HKS Hipermax S Coilover Suspension Kit – Toyota GR Corolla

Brand: HKS
Product: Coilover Suspension Full Kit Hipermax S – GR Corolla GZEA14H
Part Num: 80300-AT030

SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
– Front: 69 (7)
– Rear: 88 (9)
Free Height (mm):
– Front: 200
– Rear: 200
Recommended Range to change Spring Rate N/mm (kgf/mm):
– Front: N/A
– Rear: ±10( 1 )
Damper Force (Rebound/Damping):
– Front: 1133/515
– Rear: 633/417
– Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
– Front: 15
– Rear: 15
Damping Force Adjustment:
– Front: 30 Steps
– Rear: 30 Steps
Height Adjustable Lower Bracket:
– Front: Yes
– Rear: Yes
Upper Mount:
– Front: Rubber Bush
– Rear: Rubber Bush
Damper Layout:
– Front: Inverted
– Rear: Normal
Damper/Spring Layout:
– Front: Coilover
– Rear: Coilover
Damping force adjustable with Wire:
– Front: N/A
– Rear: N/A
Helper Spring (Spring Rate N/mm):
– Front: N/A
– Rear: N/A

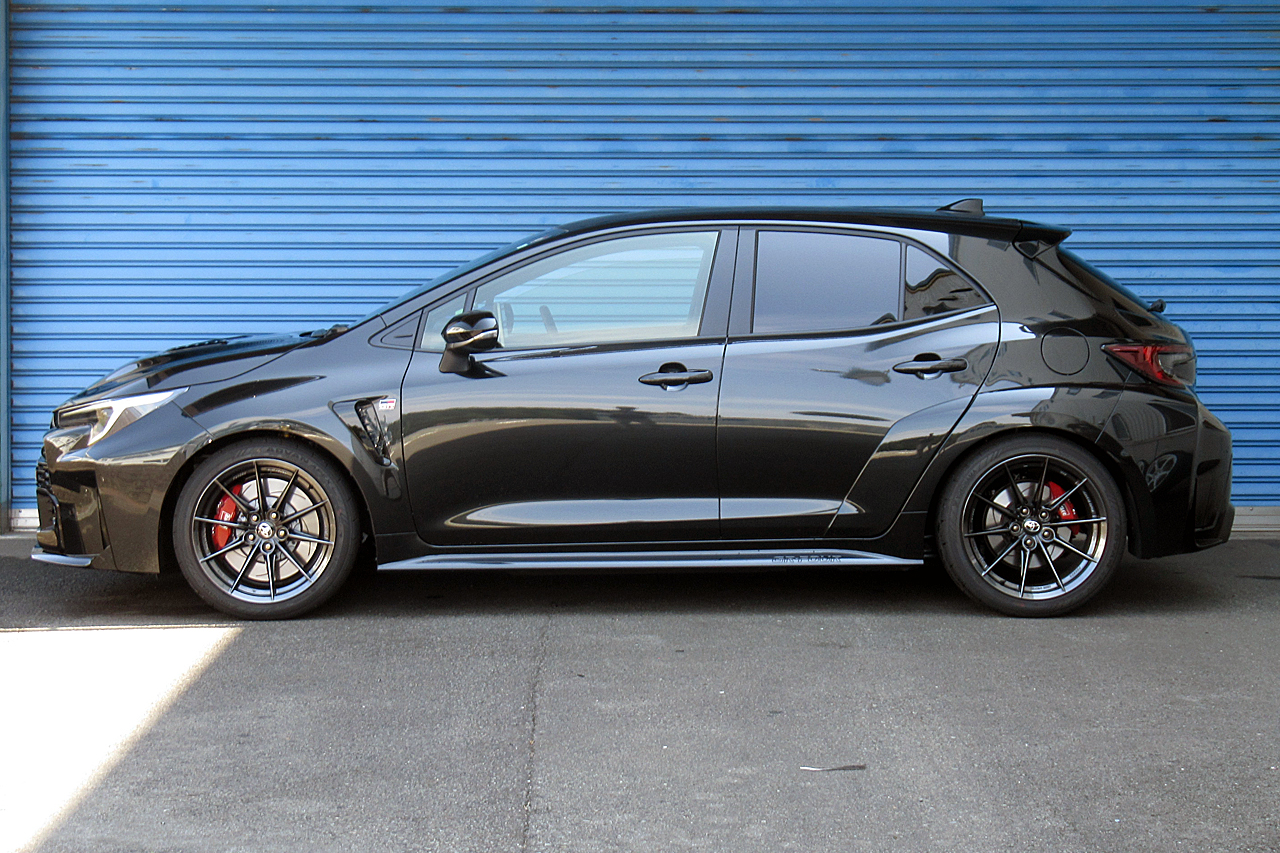

Ride Height Change (mm):
— Front: -33
— Rear: -29
Ride Height Adjustability Range (mm):
— Front: 0 ~ -82
— Rear: 0 ~ -70

PRODUCT NOTES:
– Due to lowering the vehicle height, the irradiation range of a radar and camera may become narrow, and TSS (ToyotaSupraSafety) malfunction may occur with dislodge of the alignment center.
