Brand
HKS
Compatibility

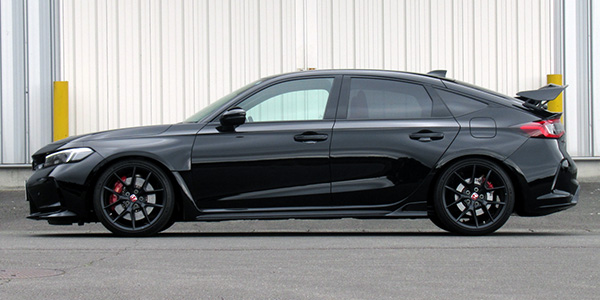

Honda Civic FL5 Type R
OEM Part Number
80300-AH013CP
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | – | – |
| Height adjustable lower bracket | × | 〇 |
| Upper mount | Spherical bearing | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | – | 〇 |
| Helper spring (Spring rate N/mm) |
〇 (19.8) | 〇 (7.6) |
Spring of Full Kit
| F | R | |
|---|---|---|
| Spring rate N/mm(kgf/mm) | 98 ( 10.0 ) | 78 ( 8.0 ) |
| Free height (mm) | 150 | 170 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm(kgf/mm) | ±20 ( 2 ) | ±10 ( 1 ) |
