Brand: HKS
Product: GT2 Supercharger System GT2 7040L Pro Kit – S2000 AP1 AP2
Part Num: 12001-AH010
SPECIFICATIONS:
Kit Includes:

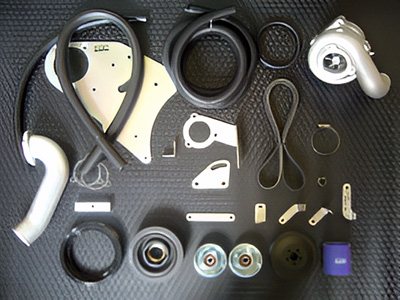

– Supercharger Assy

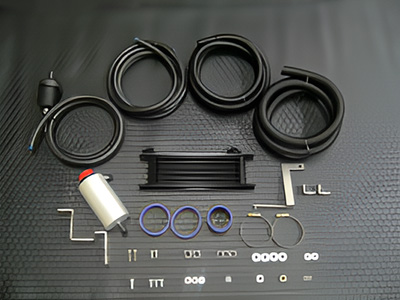

– Supercharger Oil System
– Supercharger Installation Bracket

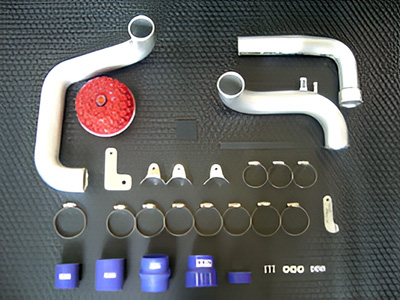

– Suction Pipe, Filter + Blow off (60mm flange Included)
Kit do not Includes:
– Fuel Control Parts (F-CON iS+OSC)
– Injectors
– Plugs
– Supercharger Traction Fluid
COMPATIBILITY NOTES:
– S-Type Oil Cooler kit cannot be used (15002-AK005, 006, 008)
– Fuel upgrade kit is recommended to be used with this kit (14007-AH001)
– GTSC Pro Kit requires a separate engine control system in order to operate correctly
– 58mm restrictor included in the GT S/C Pro kit is for US specification vehicles and may cause damage to Japanese specification cars. Please adjust restrictor size to approximately 40mm for 300ps output. Test vehicle used 44mm restrictor included with fuel upgrade kit.
– Kit does not have control device, you need separate device.
– Injector (Stock injector volume is insufficient to bring out full supercharger performance)
– Spark Plug: HKS Super Fire Racing M45i or higher
– Engine oil with high temp grade of over 40 should be used
– Clutch should be changed to one of higher torque capacity
– When fitting front mount intercooler, The stock air guide and under cover require small modification for pipe clearance.
– If using HKS Flash Editor S/C data: HKS Fuel upgrade kit must also be fitted
