Brand
HKS
Part Number
23002-AT003

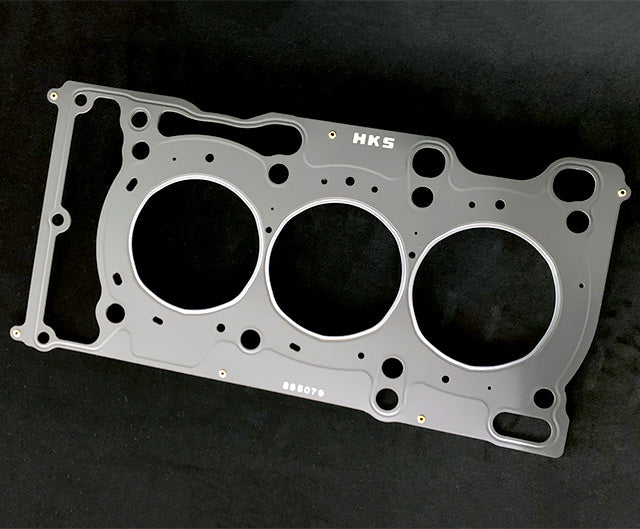

The HKS Japan grommet-type head gasket is designed to be used for increased boost pressures and high engine combustion pressures in the G16E-GTS engine.
HKS Grommet type
- It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.
- It put the shims at either end of the engine deck to apply the load evenly when tightening the head bolt to prevent the distortion of the cylinder head.
| Engine | Thickness(mm) | Compression Ratio | Bore | Code No. | Manual | Remarks |
|---|---|---|---|---|---|---|
| G16E-GTS | 0.8 | ε=10.6 | Dia. 89 (not round) | 23002-AT003 | Stock thickness t=0.85 |
