HKS 2.8L Stroker Kit Step 3 87mm – BNR32 BCNR33 BNR34

Brand: HKS
Product: Capacity Upgrade Kit 2.8L Step 3 Full Kit – BNR32 BCNR33 BNR34
Part Num: 21004-AN021

SPECIFICATIONS:
Displacement (cc): 2771

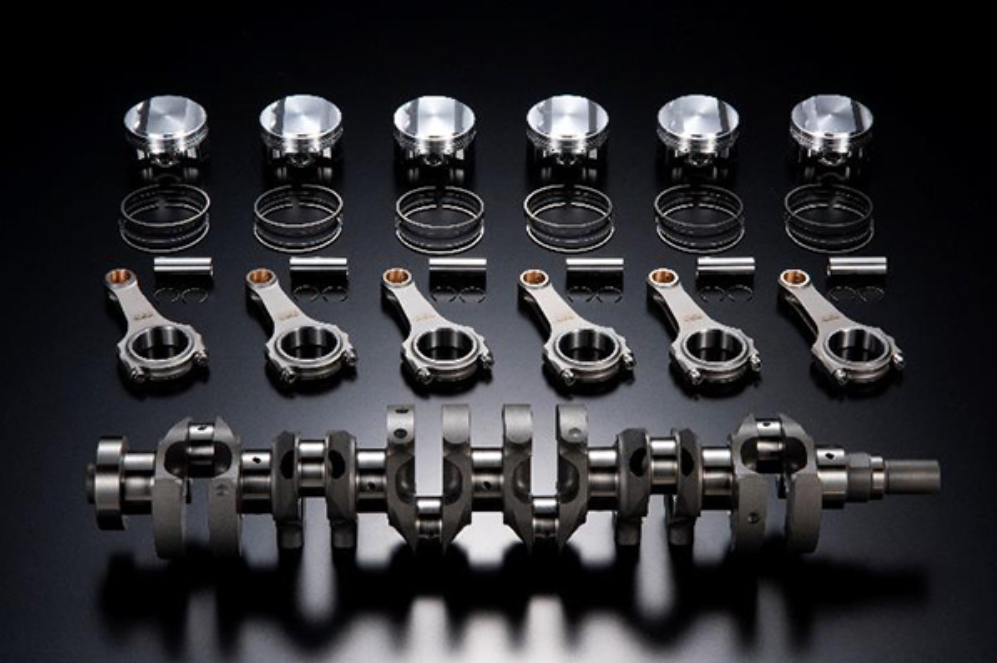

Included:
– Piston Kit (21003-AN012)
– Crankshaft (23006-AN009)
– Connecting Rods Kit (23004-AN007)
– Piston Pins (21005-AK008)
Pistons:
-Material: Billet A2618
-Weight (g): 324 (per piston)
-Piston Top Coating: Two-layer molybdenum coat
-Piston Bore (mm): 87.0
-Pin Bore (mm): 22

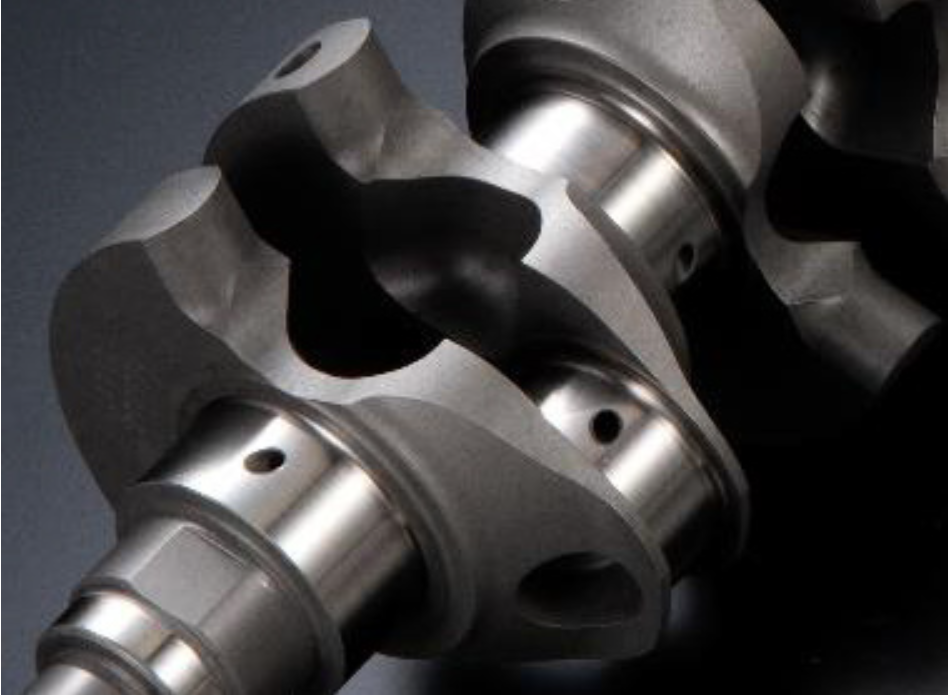

Crankshaft:
-Material: Billet Full Counter
-Weight (kg): 20.6
-Stroke (mm) 77.7

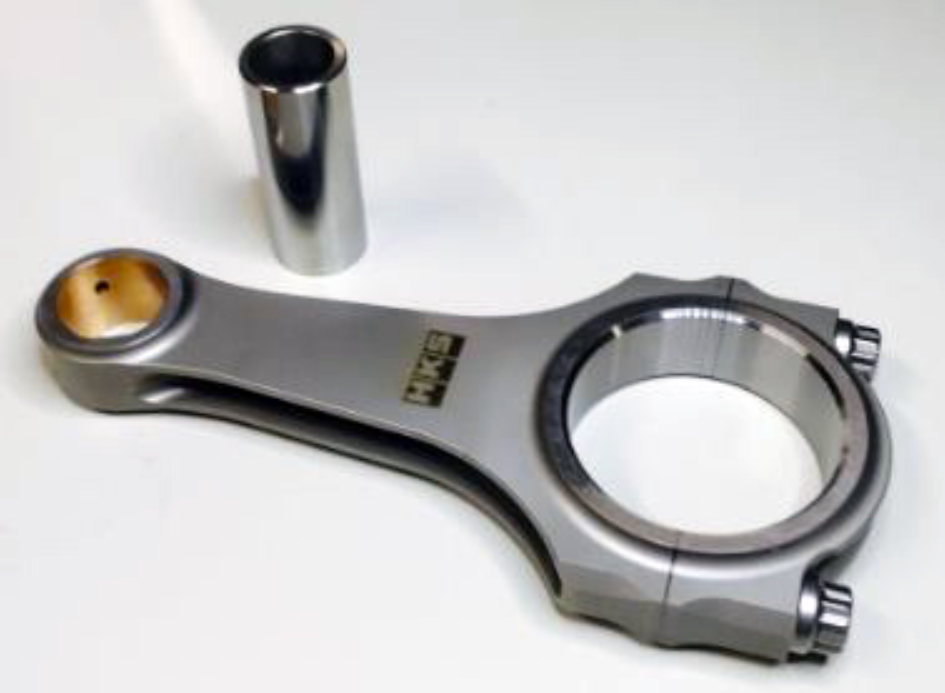

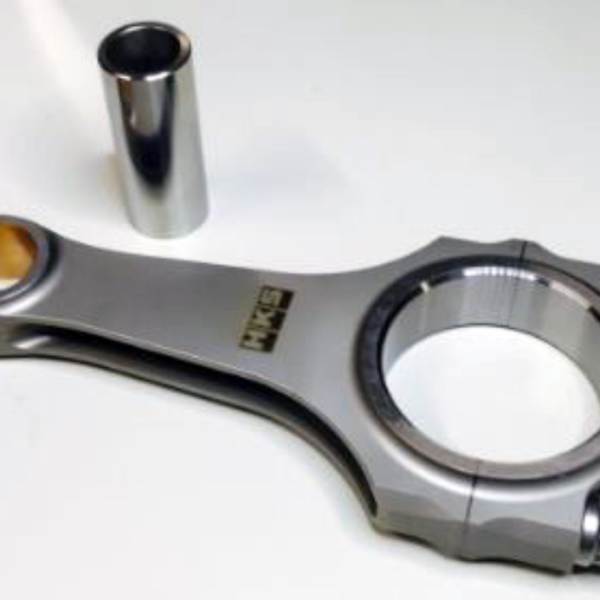

Connecting Rods:
-Material: SNCM
-Shape: H-Beam
Piston Pin:
-Diameter (mm): 22
-Length (mm): 56
-Weight (g): 97 (per pin)

PRODUCT NOTES:
HKS RECOMMENDATIONS:
– Target Max RPM: 9000
– Matching Turbine: GTIII-5R
– Target Max Power (ps): 900
