HKS 2.8L Stroker Kit Step 2 87mm – BNR32 BCNR33 BNR34

Brand: HKS

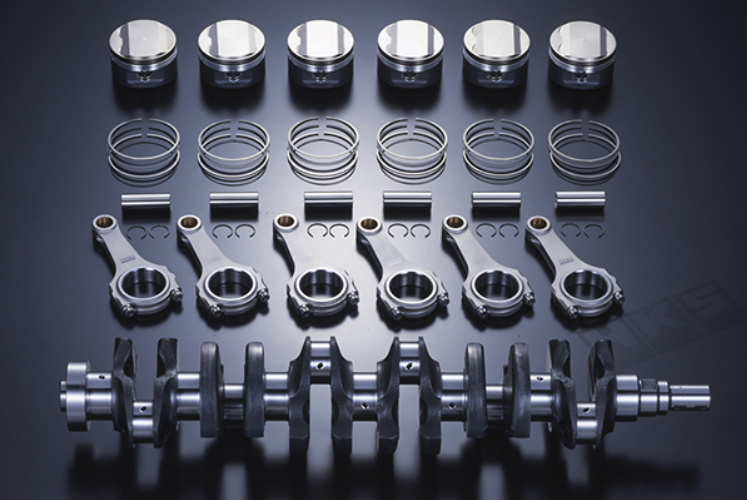

Product: Capacity Upgrade Kit 2.8L Step 2 Full Kit – BNR32 BCNR33 BNR34 260RS Stagea
Part Num: 21004-AN004

SPECIFICATIONS:
Displacement (cc): 2771
Pistons:
-Manufacturing Process: Forged
-Piston Top Coating: Nickel Plating
-Piston Bore (mm): 87.0
-Pin Bore (mm): 21.0
-Piston Weight (g): 401 (per piston)
-Top Ring: Titanium Coating Type
-Oil Ring: 2 pieces type
Piston Pin:
-Diameter (mm): 21
-Weight (g): 105.2 (per pin)
Connecting Rods:
-Material: SNCM
-Shape: H-Beam

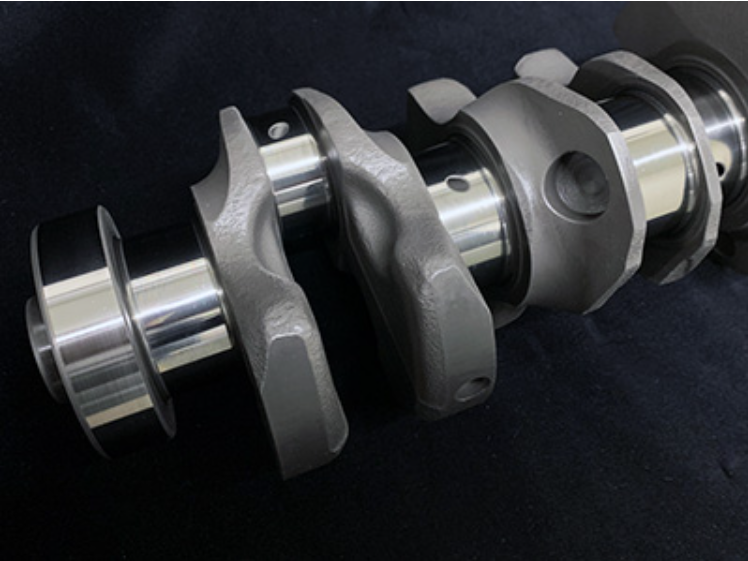

Crankshaft:
-Material: Forged Full Counter
-Weight (kg): 22.9
-Stroke (mm) 77.7

PRODUCT NOTES:
HKS RECOMMENDATIONS:
– Target Max RPM: 9000
– Matching Turbine: GT-RS/TO4A/T51R/ GTIII-RS/GTIII-5R
– Target Max Power (ps): 588kw (800ps)
