Brand
Cusco
Compatibility
Honda Civic Type R FL5
Honda Civic Type R FK8
OEM Part Number
3C4-64R-CN
Features
- Monotube shock absorber
- 24 levels of damping adjustment
- Adopting the newly developed CUSCO SPORT “Blue spring”
- Full-length adjustable vehicle height adjustment
- Pillow ball upper mount included *Excluding some vehicle models
- Ram type (inverted type) shock absorber
*Front strut type only - Compatible with S tires

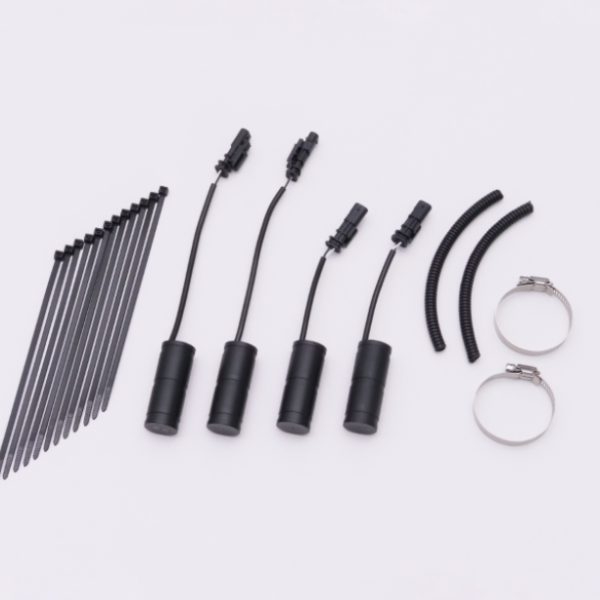

- Comes with suspension warning light canceller
CUSCO SPORT R development concept
- A setting designed to seriously shave off time using S tires and high-grip sports radials.
- For hardcore users who want a suspension system with a sportier feel than a typical sports suspension kit.
- Suitable for serious racing, time attacks and competitions.
- Specifications can be modified to suit various circuits, winding roads, and other driving stages, as well as the specifications of the machine. (Additional fees may apply depending on the modifications.)
- A damping force setup that is compatible with high rate springs has been achieved.
*For users looking for a smooth ride and comfort, we recommend the SPORT S / SPORT TN_S or Street Series.
Recommended for those who:
- For those looking for authentic racing spec suspension.
- People who are serious about getting the best time. (Want to get a time with a decimal point)
- Those who participate in races, time attacks, and competitions.
- Those who place the highest priority on sporty driving performance.
- For those who want to fine-tune the setup to suit their own driving style and machine.
Specifications
[Height adjustment]
Front: Full length adjustment
Rear: Screw spacer
[Damping force adjustment]
Front: 24
stages Rear: 24 stages
[Upper mount]

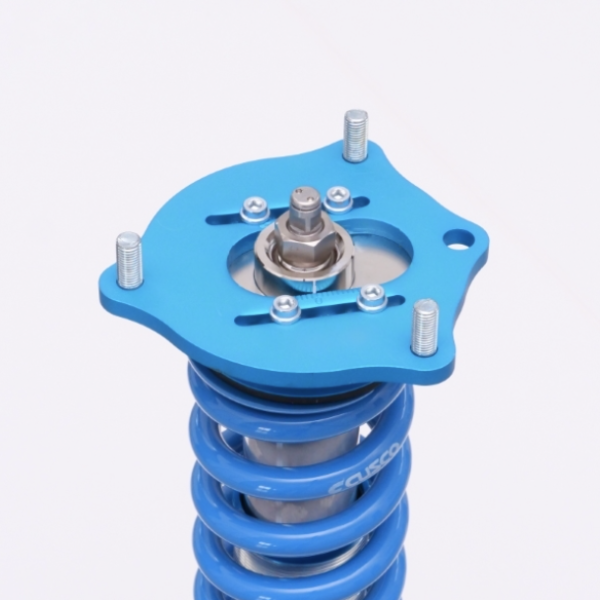

Front: Camber adjustable pillow ball upper mount
Rear: —
[Standard spring]
Front: 14 kgf/mm (065-180-14E)
Rear: 16 kgf/mm (065-150-16E)
[Optional rate spring]
Front: 12, 16 kgf/mm
Rear: 14, 15, 18 kgf/mm
[Recommended height adjustment range*]
Front: -35~ -10mm
Rear: -35~ -15mm
[Reference height]
Front: -25mm
Rear: -25mm
[Maximum height adjustment range]
Front: -35~ 0mm
Rear: -60~ -15mm
